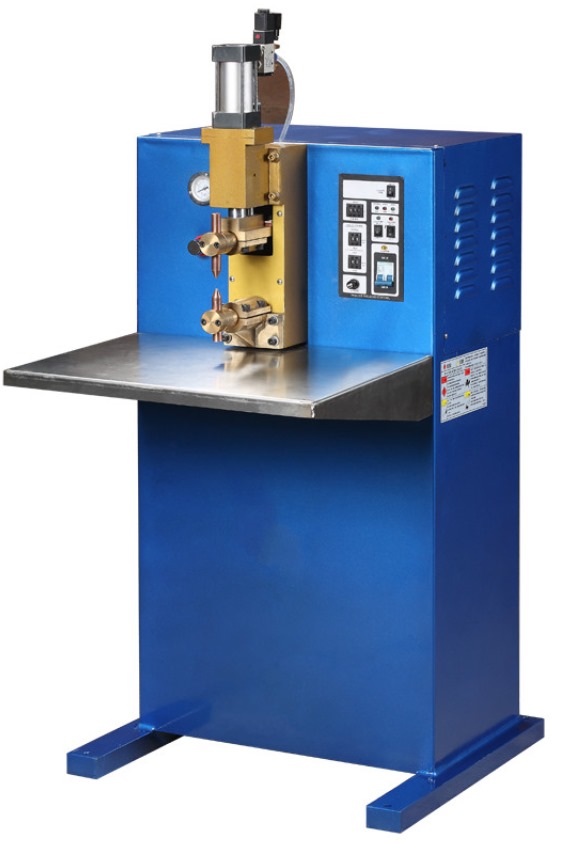

TDR系列電容儲能點凸焊機
TDR Series Capacitive Discharge Spot&Projection Welding Machine
特點及用途:
1.電容放電焊接,時間短,焊點變形小,外表美觀
2.采用單片機集成控制,功能齊全,性能可靠,且充電電壓具有反饋控制,電壓穩定性好,焊接質量高
3.輸出與電網隔離,焊接規范不受網壓波動影響,功率因數高,節能省電
4.配合不同電極,可用于焊接鋼、鋁、銀、不銹鋼、鎳等各類金屬,線材、板材的精密焊接
Features and application:
1. Capacitor discharge welding, the time is short, the solder joint deformation is small, the appearance is beautiful
2. With single chip microcomputer integrated control, complete functions, reliable performance, and the charging voltage with feedback control, voltage stability, high welding quality
3. Output and grid isolation, Welding specification is not affected by power grid voltage fluctuation, Power factor is high, energy saving
4. With different electrodes, can be used for steel, aluminum, silver, stainless steel, nickel and other types of metal, wire, sheet metal precision welding
主要技術參數 Main Technical Parameters:
參數 Parameter 型號 Model No. | 輸入電壓Input Voltage | 焊接功率Welding Power | 電容量Capacitance | 儲能量Energy Storage | 焊接臂長 Welding Arm Length | 電極行程Electrode Stroke | 電極壓力 Electrode Pressure | 總重量 Total Weight |
TDR-2KVA | 220V | 2KVA | 4500μF | 500J | 120MM | 50MM | 1000N | 280KG |
TDR-3KVA | 220V | 3KVA | 13500μF | 1500J | 380MM | 60MM | 2500N | 460KG |
TDR-5KVA | 380V | 5 KVA | 27000μF | 3000J | 380MM | 60MM | 3900N | 700KG |
TDR-7KVA | 380V | 7 KVA | 47000μF | 4500J | 380MM | 60MM | 3900N | 850KG |
TDR-10KVA | 380V | 10 KVA | 79000μF | 8000J | 380MM | 60MM | 6280N | 1000KG |
TDR-12KVA | 380V | 12 KVA | 98000μF | 10000J | 380MM | 60MM | 6280N | 1200KG |
TDR-16KVA | 380V | 16KVA | 120000μF | 12000J | 380MM | 60MM | 12000N | 1500KG |
TDR-20KVA | 380V | 20KVA | 150000μF | 15000J | 380MM | 60MM | 15000N | 1800KG |

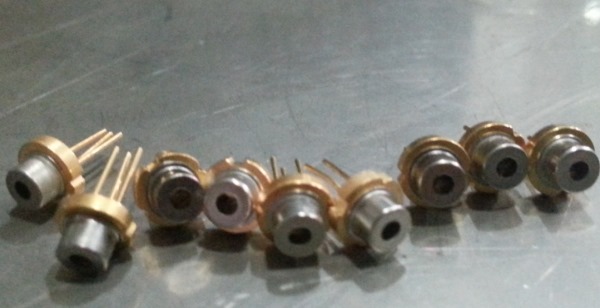

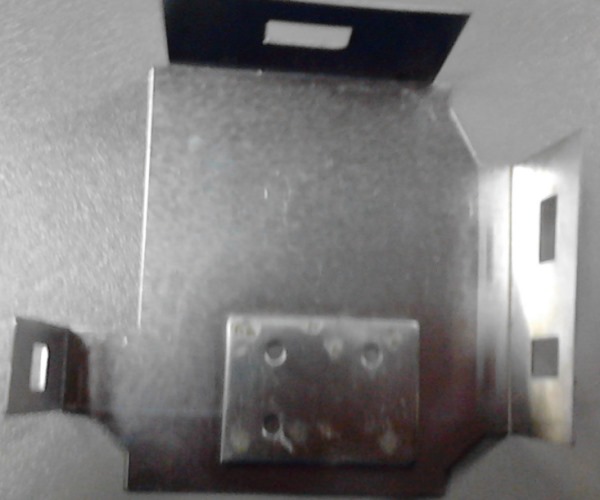

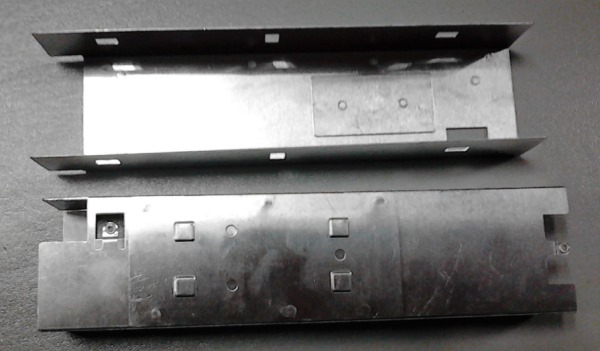

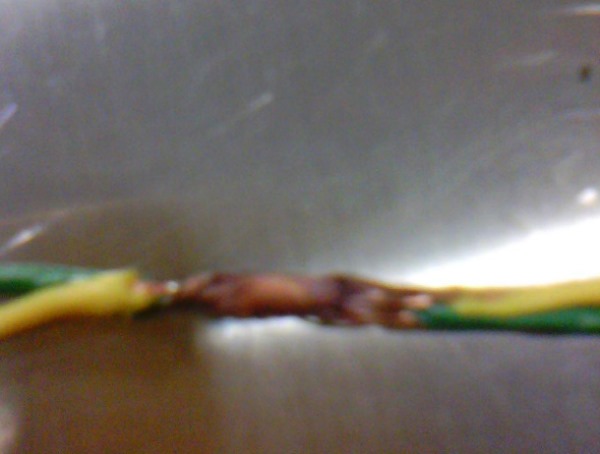

焊接實樣Welding Samples
